PRD486WDGU
(Ranges - Dual Fuel)
This Thermador 36-inch commercial-depth, Professional Series dual-fuel range is equipped with 6 burners and a griddle. This model also features convection technology, Star® Burner and Home Connect.
Ask an Expert
EXTRALOW®
The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
STAR-K CERTIFIED
Thermador Professional® Ranges are Star-K certified making it possible to use them on the Sabbath or the Holidays.

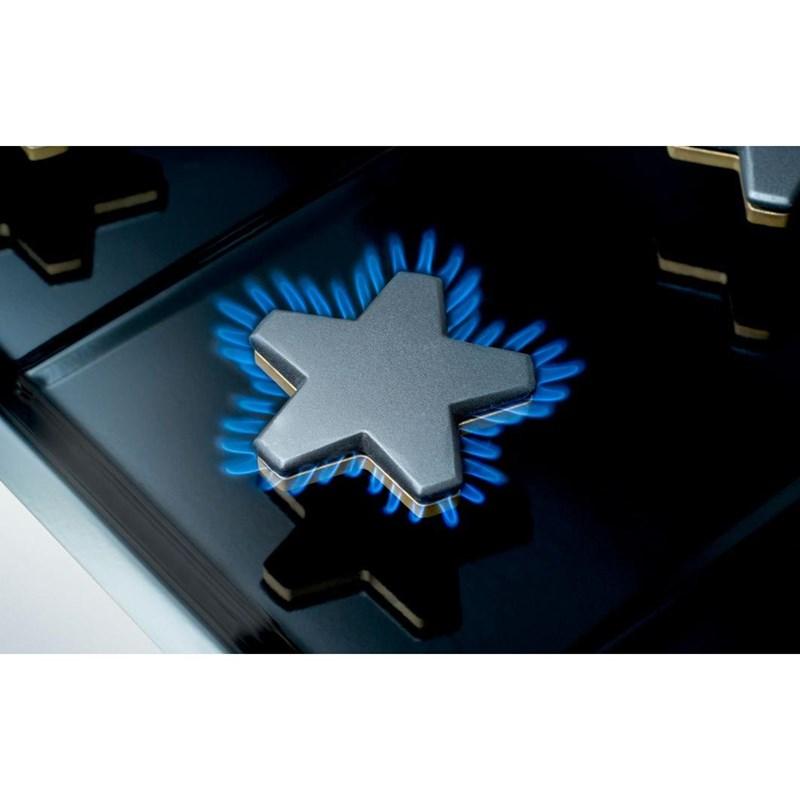

STAR® BURNERS
The Star® Burner’s unique shape isn’t just for show. It creates a perimeter 56% longer than a round burner of the same size, which allows the inclusion of more flame ports. The result is a stove burner that delivers superior flame spread and a reduced cold spot for faster and more even heating across any size pan.
TRUE CONVECTION
offers precise airflow for cooking on multiple levels without flavor transfer.
| GENERAL | |
|---|---|
| Series Name | Pro Grand® Professional |
| Fuel Type | Dual Fuel - Natural Gas |
| Installation Type | Freestanding |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Appliance Care | 2.5-Hour Self-Clean Mode |
| COOKTOP | |
| Burners/Elements | 7 |
| Burners/Elements Output |
• Power of Back Left Burner BTU: 15,000 and XLO • Power of Front Left Burner BTU: 22,000 and XHI / XLO • Power of Back Center Burner BTU: 15,000 and XLO • Power of Front Center Burner BTU: 18,000 and XLO • Power of Far Right Electric Griddle: 1,630 W (6-Pass) • Power of Back Right Burner BTU: 15,000 and XLO • Power of Front Right Burner BTU: 18,000 and XLO |
| Burner/Element Size | 12" Electric Griddle |
| Burners | Sealed |
| Other | Griddle |
| OVEN | |
| Capacity (cu. ft.) |
• Total Capacity: 8.2 cu.ft. • Large Oven: 5.7 cu.ft. • Small Oven: 2.5 cu.ft |
| Number of Ovens | Double |
| Programs |
• Large Oven: • Bake • Convection Bake • True Convection • Convection Roast • Roast • Convection Broil • Broil • Small Oven: • Bake • Convection Bake • Proof • Keep Warm • Convection Roast • Roast • Convection Broil • Broil |
| FEATURES | |
| Technologies |
• ExtraLow® Burners • Star® Burner • True Convection Techology • Home Connect™ (Wi-Fi enabled) (Large Oven Only) |
| Convection | Yes |
| Digital Temperature Display | Yes |
| Oven Light | Yes |
| Self-Cleaning | Yes |
| Wi-Fi | Yes |
| Additional Information |
• Self-Clean (Large Oven / Small Oven) • Telescopic Racks (Large Oven / Small Oven): 3 / 2 • Interior Lights (Large Oven / Small Oven): 2 / 1 • Bake Power (Large Oven / Small Oven): 2,000 W / 1,400 W • Broil Power(Large Oven / Small Oven): 4,000 W / 2,600 W • Convection Power(Large Oven / Small Oven): 2,750 W / 1,960 W |
| ELECTRICAL INFORMATION | |
| Information |
• 240 V / 208 V • 60 Hz • 50 A |
| CERTIFICATIONS AND APPROVALS | |
| Sabbath/Star-K | Yes |
| ACCESSORIES | |
| Included |
• Multi-Point Meat Probe • 1 Griddle Plate • 1 Grease Tray • 1 Lg Broil Pan • 1 Sm. Broil Pan • Island Trim |
| Optional |
• PABRICKBKW Flat Ceramic Briquettes with Basket • PWOKRINGHC Wok Ring • PAGRIDDLE Professional Griddle, Sits on Top of Grates Over 2 Star Burners, High-Release Coating • PAGRIDDLEW 12" Pro Griddle Plate (for Briquette Grill Models), Fusion Coating • PA12GRILFW 12" Grill Plate with Tray (for Griddle Models), Fusion Coating • PA12LCVRN 12" Professional Indoor Grill Cover • PA48WLBSG 7" Low Back Backguard* • PAKNOBLUWG Metallic Blue Knob Kit • PABRICKW Flat Ceramic Briquettes without Basket • PA12CHPBLK Chopping Block / Cutting Board • PA12GRILLW 12" Pro Grill Plate with Tray, (for Griddle Models), Non-Fusion Coating • PAGRIDLFW 12" Pro Griddle with Tray, (Fusion Coating Option for Griddle Models) • PA12LCVRW 12" Professional Griddle Cover • PA24CVRW 24" For Grill / Griddle Combination Models • PA48WTKG Toekick • PALPKITHW LP Conversion Kit Dual-Fuel Pro Ranges and Rangetops (4 and 6 Burner) |
| DIMENSIONS | |
| Class Width | 48" |
| Width | 47.95 inch(es) / 121.8 cm |
| Height | 35.75 inch(es) / 90.8 cm |
| Depth (Without Handles) | 29.02 inch(es) / 73.7 cm |
| Depth (Including Handles) | 30.63 inch(es) / 77.8 cm |
| Weight | 493 lb(s) / 223.62 kg |
| Additional Dimensions | Required Cutout Size (HxWxD): 35 3/4" – 36 3/4" x 48" x 24" – 25 1/8" |
| WARRANTY | |
| Warranty | Limited 2 Years Parts and Labor |
