HMCB36WS
(Ventilation - Range Hoods)

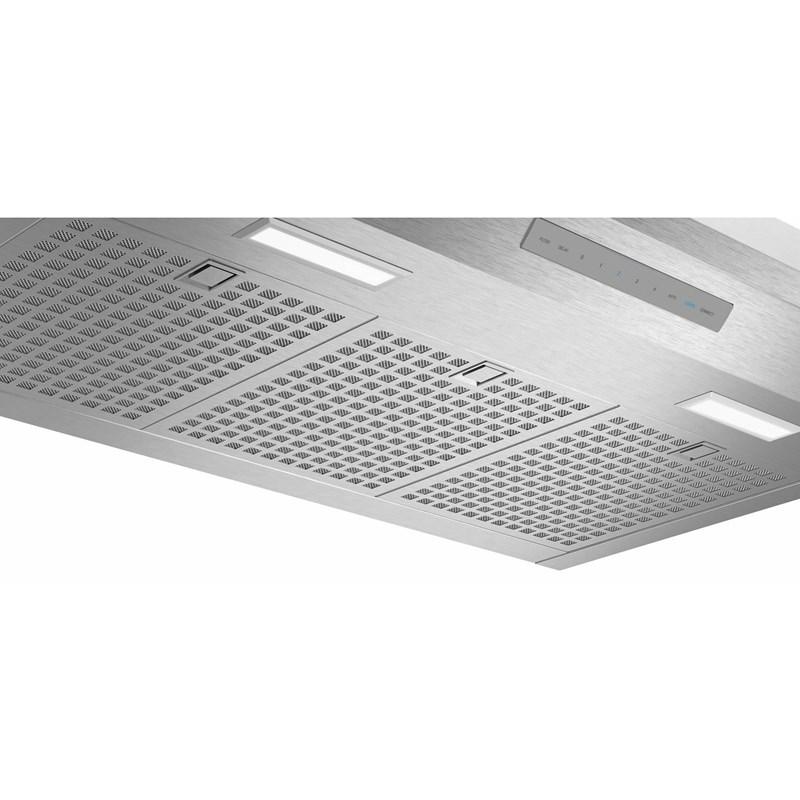

This Thermador 36-inch chimney wall hood features delay shut-off, multi-level LED, Noise Control Technology™ and Home Connect™.
Ask an Expert
| GENERAL | |
|---|---|
| Series Name | Masterpiece® |
| Blower Included | Yes |
| Airflow | 600 CFM |
| Style | Chimney |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Installation | Wall Mount |
| FEATURES | |
| Wi-Fi | Yes |
| Technologies |
• Noise Control Technology™ • Home Connect™ (Wi-Fi Enabled) |
| Ducting Information | Diameter of Air Duct Top: 8" |
| Speeds | 4-Speeds |
| Additional Information |
• Sones: 2.3 (Measured at Speed 1 in Ducted Installation) • Hybrid Mesh Filters • Cooktop Hood-Sync Enabled • Multi-Level LED Lights with Fading Transitions • Automatic Mode • Check Filter Reminder Light • Delay Shut-Off • Washable Stainless Steel Filters |
| ELECTRICAL INFORMATION | |
| Information |
• 120 V • 60 Hz • 15 A |
| ACCESSORIES | |
| Included | Damper |
| Optional |
• Stainless Steel Chimney Hood Extension • CHXTHMCB- For up to 12-foot ceiling applications. Extension replaces upper section of standard chimney extension • Recirculation Kit • RECHMCB- For HMCBxxWS Masterpiece® Chimney Wall Hoods only • Replacement Charcoal Filter • CHFHMCD - For use with recirculation kit RECHMCB • Remote Control Panel • REMCPW - Ability to vertically install on cabinetry or wall to control hood in a convenient location • 8" Wall Cap WC8 |
| DIMENSIONS | |
| Class Width | 36" |
| Width | 35.94 inch(es) / 91.3 cm |
| Height | 30 inch(es) / 76.2 cm |
| Depth | 23.19 inch(es) / 58.9 cm |
| Weight | 69 lb(s) / 31.3 kg |
| Additional Dimensions |
• Height of the Chimney: 25" – 27" • Accommodates Ceiling Heights Up to 9' Ceiling Heights • Required Distance Above Cooktop / Range Cooking Surface: 30" / 30" |
| WARRANTY | |
| Warranty | Limited 2 Years and Labor |
| UPC | |
| UPC# | 825225935711 |
