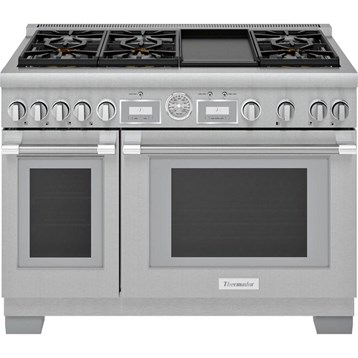

PRG486WDG
(Ranges - Gas)
This Thermador 48-inch gas Pro Grand® range with griddle features 6 burners, Home Connect, True Convection system, an ExtraHigh Star® burner and 4 ExtraLow® burners for simmering, melting, or holding food warm for long durations.
Ask an Expert
EXTRALOW®
The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
TRUE CONVECTION
offers precise airflow for cooking on multiple levels without flavor transfer.
PATENTED STAR BURNER
Exclusive, sealed 3-in-1 Star® Burner’s unique five-point design offers a reduced cold spot, faster time to boil and the ExtraLow feature. The coverage area allows for more ports and more flame distribution than a round burner.
SOFTCLOSE®
Door ensures ultra smooth closing of the oven door.
| GENERAL | |
|---|---|
| Series Name | Pro Grand® Professional |
| Fuel Type | Natural Gas |
| Installation Type | Freestanding |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Appliance Care | Superfast 2.5-hour self-clean |
| COOKTOP | |
| Burners/Elements | 7 |
| Burners/Elements Output |
• Power of back left burner BTU: 15,000 and XLO • Power of front left burner BTU: 22,000 and XHI / XLO • Power of back center burner BTU: 15,000 • Power of front center burner BTU: 18,000 • Power of center electric griddle: 1,630 W (6-Pass) • Power of back right burner BTU: 15,000 and XLO • Power of front right burner BTU: 18,000 and XLO |
| Burner/Element Size | 12" electric griddle |
| Burners | Sealed |
| Other | Griddle |
| OVEN | |
| Capacity (cu. ft.) |
• Total capacity: 8.2 cu.ft. • Large oven: 5.7 cu.ft. • Small oven: 2.5 cu.ft. |
| Number of Ovens | Double |
| Programs |
• Large cavity: • Bake • Convection bake • Roast • Broil • Small cavity: • Bake • Convection bake • Proof • Roast • Broil |
| FEATURES | |
| Technologies |
• ExtraLow® burners • ExtraHigh Star® burner • Hydraulic SoftClose® hinges • True Convection System • Home Connect™ (Wi-Fi Enabled) |
| Convection | Yes |
| Digital Temperature Display | Yes |
| Oven Light | Yes |
| Self-Cleaning | Yes |
| Wi-Fi | Yes |
| Additional Information |
• Bake power (Lg / Sm): 23,700 BTU / 15, 000 BTU • Broil power (Lg / Sm): 17,500 BTU / 8,000 BTU (Both Infrared) • Interior lights (Lg / Sm): 2 / 1 |
| ELECTRICAL INFORMATION | |
| Information |
• 120 V • 60 Hz • 20 A |
| CERTIFICATIONS AND APPROVALS | |
| Sabbath/Star-K | Yes |
| ACCESSORIES | |
| Included |
• 3 telescopic racks • 2 small telescopic racks • Multi-point meat probe • 1 griddle grate • 1 grease plate • 1 large broil pan • 1 small broil pan • Island trim |
| DIMENSIONS | |
| Class Width | 48" |
| Width | 47.95 inch(es) / 121.8 cm |
| Height | 35.75 inch(es) / 90.81 cm |
| Depth (Without Handles) | 29.37 inch(es) / 74.6 cm |
| Depth (Including Handles) | 30.63 inch(es) / 77.8 cm |
| Weight | 492.01 lb(s) / 223.17 kg |
| Additional Dimensions | Required cutout size (HxWxD): 35 3/4" – 36 3/4" x 48" x 24" – 25 1/8" |
| WARRANTY | |
| Warranty | Limited 2 years parts and labor |
| UPC | |
| UPC# | 825225928362 |
