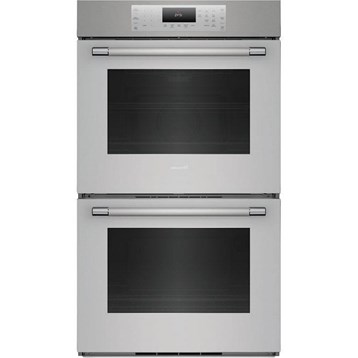

ME302YP
(Wall Ovens - Double Oven)
This 30-inch wide Thermador wall oven features true convection technology, a self-cleaning oven, Wi-Fi connectivity and a total oven capacity of 9.2 cu.ft. (both ovens)
Ask an Expert
SOFTCLOSE® DOOR
SoftClose® hinges prevent slamming and ensure ultra smooth closing of the oven door.
TRUE CONVECTION
The thoughtfully engineered and perfectly executed True Convection baffle system allows hot air to flow precisely and evenly around food for perfect results and no flavor transfer.

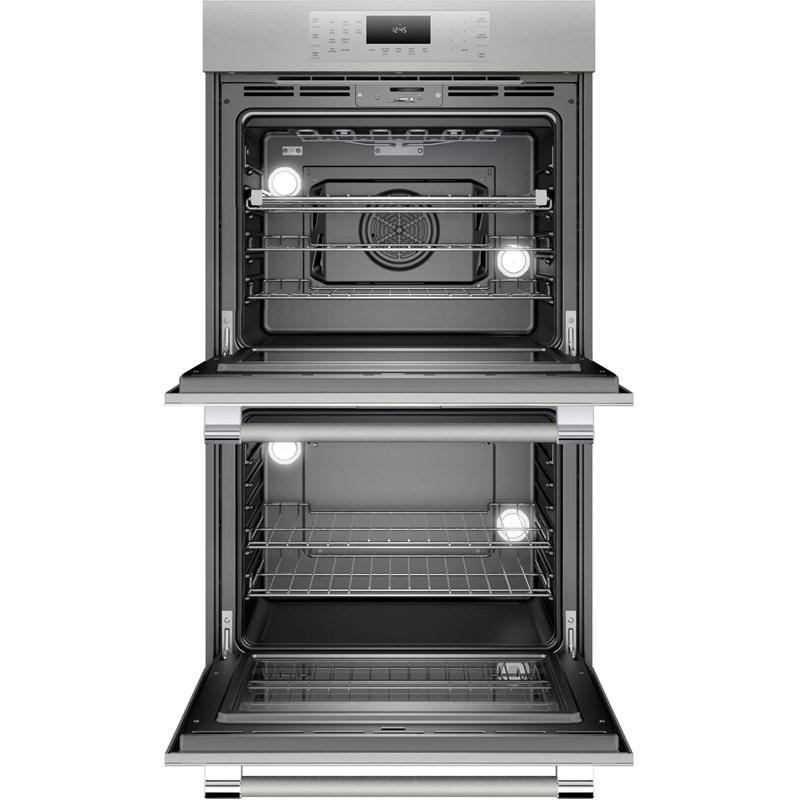

ACCESS® TELESCOPIC RACKS
Full Access® telescopic racks glide smoothly on ball bearings, allowing them to expand completely for safe, easy access to your meal. Plus, their robust construction safely supports the heaviest dishes while integrated easy-grip handles make them easy to use.
IMPORTANT: Images may not reflect actual product.
| GENERAL | |
|---|---|
| Series Name | Masterpiece® |
| Fuel Type | Electric |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Total Capacity | 9.2 cu. ft. / 0.26 cu. m. |
| Main Oven Capacity | 4.6 cu. ft. / 0.13 cu. m. |
| Secondary Oven Capacity | 4.6 cu. ft. / 0.13 cu. m. |
| Appliance Care | Self-clean mode cleans interior walls and rack supports in aslittle as 2 hours (Upper and lower oven) |
| OVEN SPECIFICATIONS | |
| Technologies |
• True Convection Technology • Home Connect (Wi-Fi Enabled) • SoftClose® Hinges |
| Programs |
Upper Oven: • Bake • Variable Broil (hi & low) • Roast • Warm • Proof Dough • Convection Bake • Convection Broil • Convection Roast • Pizza • True Convection • Fast Preheat Lower Oven: • Bake • Variable Broil (hi & low) • Roast • Warm • Sabbath |
| Clock | Yes |
| Convection | Yes |
| Digital Temperature Display | Yes |
| Oven Light | Yes |
| Self-Cleaning | Yes |
| Wi-Fi | Yes |
| Additional Information |
• 11 Heating Modes Upper Oven • 5 Heating Modes Lower Oven • Professional Handles • 2 Halogen Lights (Both Ovens) • Bake Element 2,400 W (4 Passes) (Both Ovens) • Broil Element 3,800 W (12 Passes) (Both Ovens) • Convection Element 2,200 W (Upper Oven) |
| CERTIFICATIONS | |
| Certifications |
• Sabbath Mode • ADA Compliant • CSA |
| ELECTRICAL INFORMATION | |
| Information |
• 240 V / 208 V • 60 Hz • 40 A |
| ACCESSORIES | |
| Included |
• Upper Oven: 1 Telescopic and 2 Standard Oven Racks • Lower Oven: 2 Standard Oven Racks |
| DIMENSIONS | |
| Class Width | 30" |
| Width | 29.75 inch(es) / 75.57 cm |
| Height | 52.09 inch(es) / 132.3 cm |
| Depth | 24.5 inch(es) / 62.23 cm |
| Additional Dimensions |
• Trim Overlaps (Top – Sides – Bottom): 3/8" to 2" – 9/16" – 0" • Required Cutout Size (HxWxD) – Standard: 49 3/4" – 51 1/2" x 28 1/2" x 23 1/2" • Required Cutout Size (HxWxD) – Flush: 52 3/16" x 30" x 24 1/2" • Overall Oven Interior Dimensions (HxWxD): 17 13/16" x 24 1/8" x 17 13/16" • Usable Oven Interior Dimensions (HxWxD): 12 5/16" x 23 1/4" x 15 1/4" |
| Weight | 295.99 lb(s) / 134.26 kg |
| WARRANTY | |
| Warranty | Limited 2 Years Parts and Labor |
| UPC | |
| UPC# | 825225964148 |
