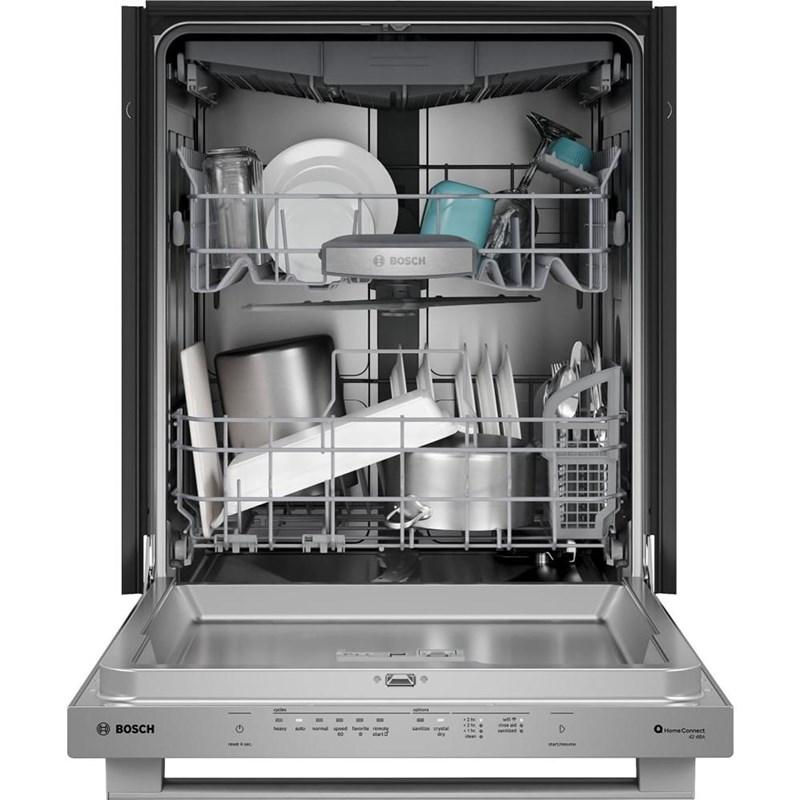

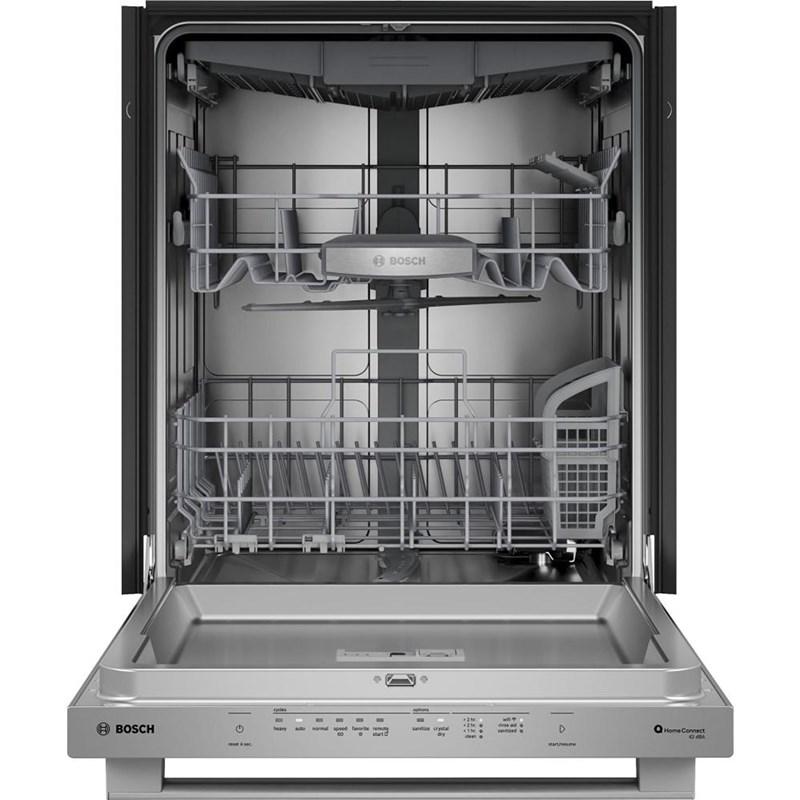

SHX78DM5N
(Dishwashers - Top Controls)
The Bosch 800 Series 24-inch Top Control Dishwasher with bar handle delivers exceptional cleaning and drying performance with Patented CrystalDry™ technology, ensuring spotless, moisture-free dishes. With a 16 place setting capacity, it accommodates large loads effortlessly. Stay connected and in control with Wi-Fi-enabled Home Connect®, allowing remote monitoring and operation for ultimate convenience.
Ask an Expert
Documents
HOME CONNECT™.
Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect.
INFOLIGHT®
InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready
| GENERAL | |
|---|---|
| Series Name | 800 Series |
| Type | Built-In |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Place Settings | 16 |
| Tub Material | Stainless Steel |
| Silence Rating | 42 dB |
| CYCLE INFORMATION | |
| Number of Cycles | 8 |
| Wash Cycles |
• Wash cycles (control panel): 5 (Heavy, Auto, Normal, Speed60 (1hr Wash), Favorite) • Additional wash cycles (in Home Connect®): 3 (Delicate, Rinse, MachineCare) |
| Options |
• Options (control panel): 3 (Sanitize, Remote Start, Crystal Dry) • Additional options (in Home Connect®): 2 (Half Load, Eco) |
| FEATURES | |
| Technologies |
• PrecisionWash® System • CrystalDry™ System • RackMatic® • Leak protection system: 24/7 AquaStop® • Home Connect® (Wi-Fi enabled) • InfoLight® |
| 3rd Rack System | Yes |
| Wi-Fi | Yes |
| Additional Information |
• Concealed water heating element • Five-level wash • Water usage per cycle: 3.2 gal |
| ELECTRICAL INFORMATION | |
| Information |
• Total annual energy consumption: 240 kWh • 1440 W • 12 A • 120 V • Power cord full length: 67" • Power cord install length from edge of unit when facing the door: Left – 45", Right – 56" |
| CERTIFICATIONS AND APPROVALS | |
| Energy Star Certified | Yes |
| NSF® Certified | Yes |
| ACCESSORIES | |
| Optional |
• Junction Box SMZPCJB1UC • Junction Box + Supply Hose Kit SMZ3IN1UC • Supply Hose Kit with Elbow SMZSH1ABUC • Drain Hose Extension Kit SGZ1010UC • Dishwasher Accessory Kit SMZ5000 • Flexible Silverware Basket SMZ4000UC • Anti-Tarnish Silverware Cassette SMZ5002UC • Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC |
| DIMENSIONS | |
| Class Width | 24" |
| Width | 23.54 inch(es) / 59.8 cm |
| Height (Min.) | 33.86 inch(es) / 86.0 cm |
| Depth (Without Handle) | 23.7 inch(es) / 60.2 cm |
| Weight | 95.99 lb(s) / 43.54 kg |
| Additional Dimensions | Required cutout size (HxWxD): 33 7/8" x 24" x 24" |
