AK9534AS
(Ventilation - Hood Inserts)

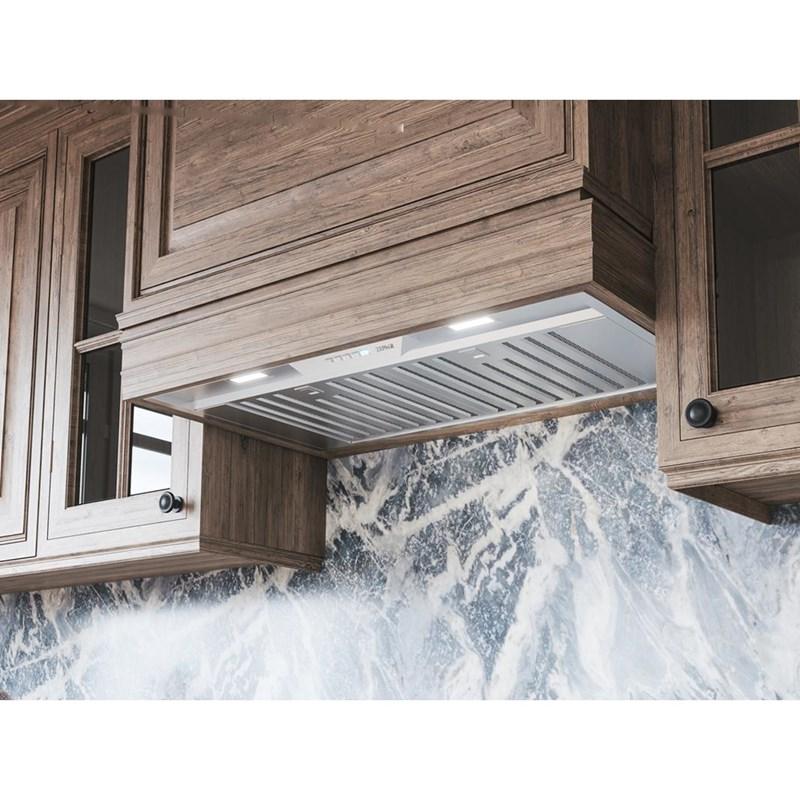

A quiet storm of air-clearing power in a designer package, the Monsoon Mini II gets the job done. It features a 600-CFM blower, hybrid baffle filters, Airflow Control Technology (ACT™), and dual-level LumiLight LED lighting. Also includes recirculating and make-up air options.
Ask an Expert
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
IMPORTANT: Images may not reflect actual product.
| GENERAL | |
|---|---|
| Series Name | Monsoon Mini II |
| Blower Included | Yes |
| Airflow | 600 CFM |
| Style | Custom Insert |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Installation | Built-In |
| FEATURES | |
| Technologies | ACT™ Technology |
| Ducting Information |
• Vertical Internal Blower 7" Round, 3-1/4" x 10" • Horizontal Internal Blower 3-1/4" x 10" |
| Speeds | 3 Speeds: *When ACT™ is enabled the maximum speed levels will change. ACT 390 = 2 speeds and ACT 290 = 1 speeds |
| Additional Information |
• Blower CFM (Min. - Max.) 290 - 600 • Sones (Min. - Max.) 1.5 - 6 • ACT 390 CFM (Min. - Max.) 290 - 390 • ACT 290 CFM (Min. - Max.) 290 - 290 • Electronic Touch Controls • Auto Delay-Off • LumiLight LED, 6W x2 • Dual-Level Lighting • Filters Hybrid Baffle x2 • Recirculating Option |
| ELECTRICAL INFORMATION | |
| Information |
• 120 V • 60 Hz • 4 A |
| ACCESSORIES | |
| Optional |
• Recirculating Kit ZRC-9100A • Make-Up Air Kit MUA006A • Damper, 7" Round AK00067 |
| DIMENSIONS | |
| Class Width | 36" |
| Width | 34.37 inch(es) / 87.31 cm |
| Height | 6.12 inch(es) / 15.55 cm |
| Depth | 18.06 inch(es) / 45.87 cm |
| WARRANTY | |
| Warranty | 3 Years Parts, 1 Year Labor |
| UPC | |
| UPC# | 646328009914 |
