ZGU364NDTSS
(Cooktops - Gas)

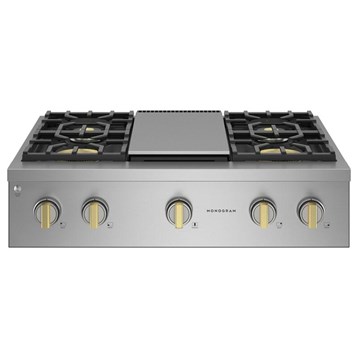

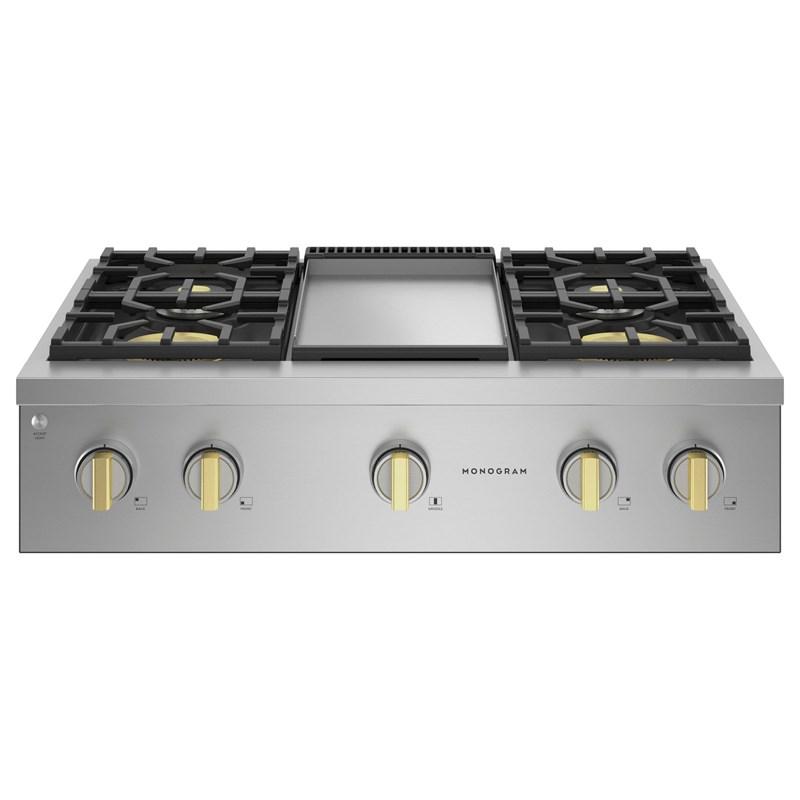

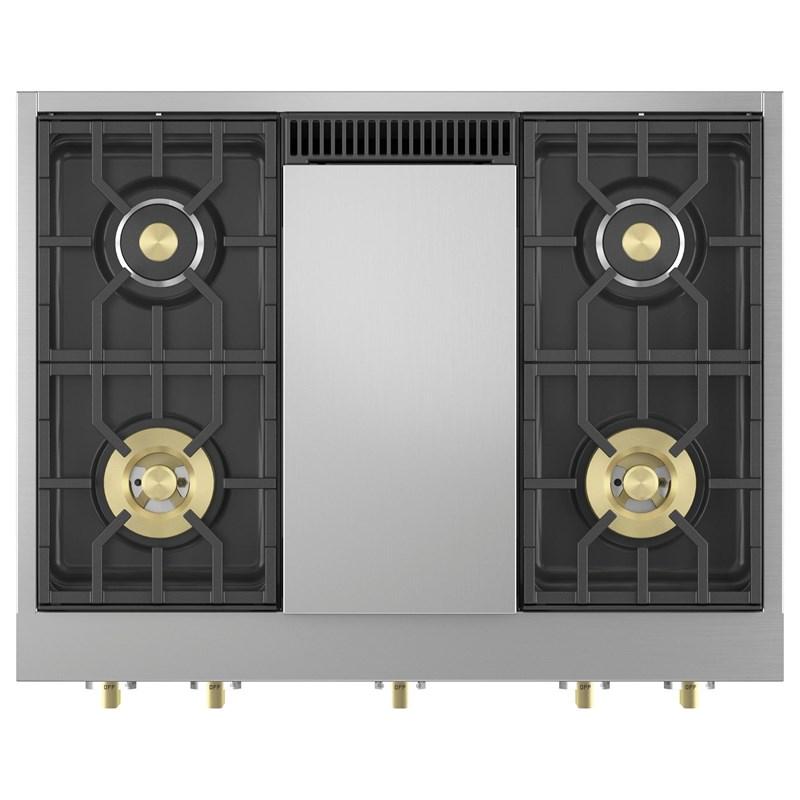

Monogram 36" Professional Gas Rangetop with 4 Burners and Griddle (Natural Gas). Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame. The versatile griddle delivers 18,000 BTUs of cooking power, allowing fast and consistent heating across the entire cooking surface.
Ask an Expert
ADA COMPLIANT
Designed to be easily accessible.
RING-LIT KNOBS
Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use.

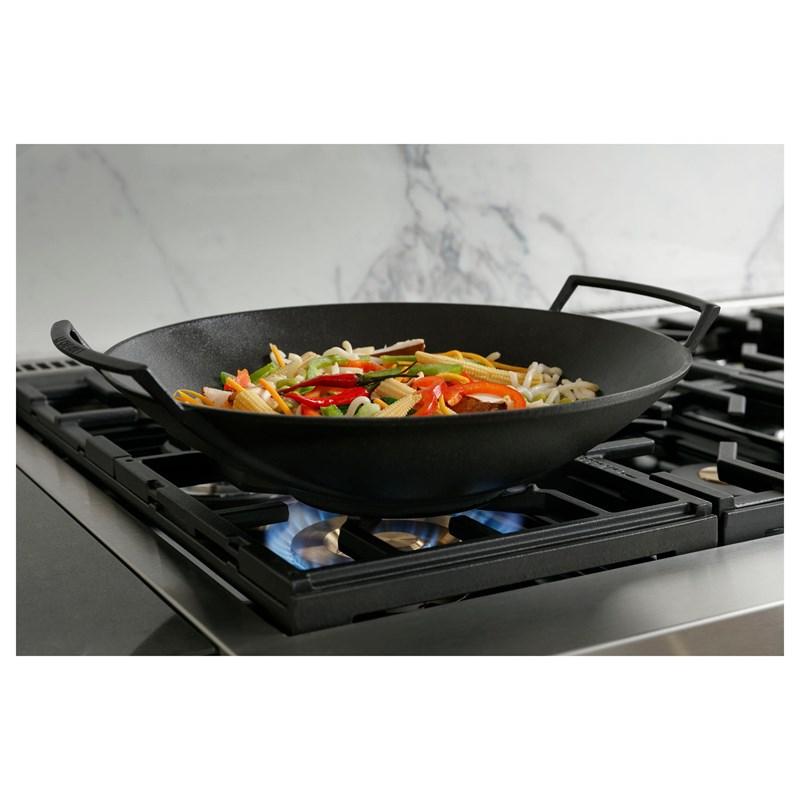

3-PIECE GRATES WITH REVERSIBLE WOK FEATURE
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks.
SEAMLESS STAINLESS TOP FRAME
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at.

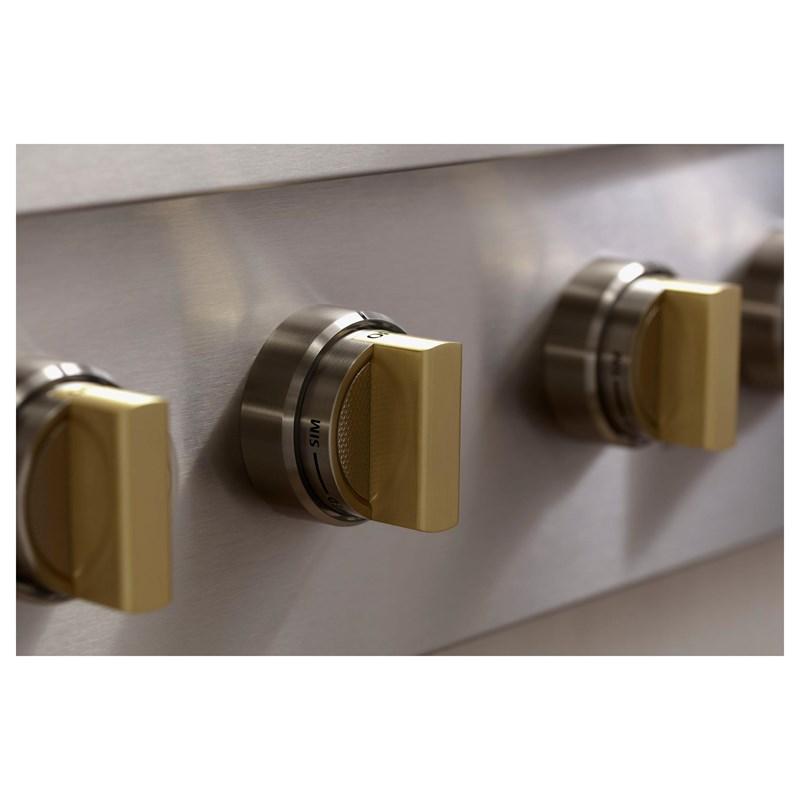

SOLID BRASS BLADES ON PRECISION MACHINED KNOBS
With an unmatched attention to detail, all knobs on the Monogram Pro ranges and range tops come with solid brass accents.
| GENERAL | |
|---|---|
| Series Name | Design Style: Statement Collection |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Fuel Type | Natural Gas |
| Type | Rangetop |
| COOKTOP | |
| Burners/Elements | 4 |
| Power Output |
• Front Left Burner: 23,000-BTU • Back Left Burner: 15,000-BTU • Griddle: 18,000-BTU • Front Right Burner: 23,000-BTU • Back Right Burner: 15,000-BTU |
| Burners | Sealed |
| Other | Griddle |
| Surface Features | Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| FEATURES | |
| Clock | No |
| Digital Display | No |
| Additional Information |
• Control Knobs: Diecast Metallic (Included) Stainless Steel with Brass Accents • Control Location: Upfront • Extra Low Simmer: All Burners - Adjustable • Griddle: Stainless Steel and Aluminum Clad Thermostatically Controlled • Burner Indicator Light • Lighting: LED Bullnose Task Lighting • Removable Drip Tray Liners: (1) Beneath Griddle |
| ELECTRICAL INFORMATION | |
| Information | Volts/Hertz/Amps: 120V; 60Hz; 15A |
| CERTIFICATIONS AND APPROVALS | |
| ADA Compliant | Yes |
| Information | cCSAus |
| ACCESSORIES | |
| Included |
• Stainless Steel No-Mark Griddle/Grill Cover • Factory-installed island backguard • LP Conversion Kit |
| Optional |
• 30/36" Monogram Knob Kit (SS, qty. 9): ZXPR36KKTSS • High Altitude Kit: WB28K10553 • Optional 2" stainless steel backsplash: UX12B36PSS • 30"-36" adjustable stainless steel backsplash with warming shelf: UXADBS48PSS • Optional Grill Accessory (Cast Iron): UXPRRGG |
| DIMENSIONS | |
| Class Width | 36" |
| Width | 35.87 inch(es) / 91.12 cm |
| Height | 8.5 inch(es) / 21.59 cm |
| Depth | 27.5 inch(es) / 69.85 cm |
| Weight | 135.01 lb(s) / 61.24 kg |
| SHIPPING DIMENSIONS | |
| Width | 38.5 inch(es) / 97.79 cm |
| Height | 19.3 inch(es) / 49.02 cm |
| Depth | 34.7 inch(es) / 88.14 cm |
| Weight | 163.01 lb(s) / 73.94 kg |
| WARRANTY | |
| Warranty |
• Limited 2-year entire appliance for parts and labor • Limited 5-year for gas surface burners (parts only) • See written warranty for full details |
| UPC | |
| UPC# | 084691851226 |
