ZVW1480SPSS
(Ventilation - Range Hoods)

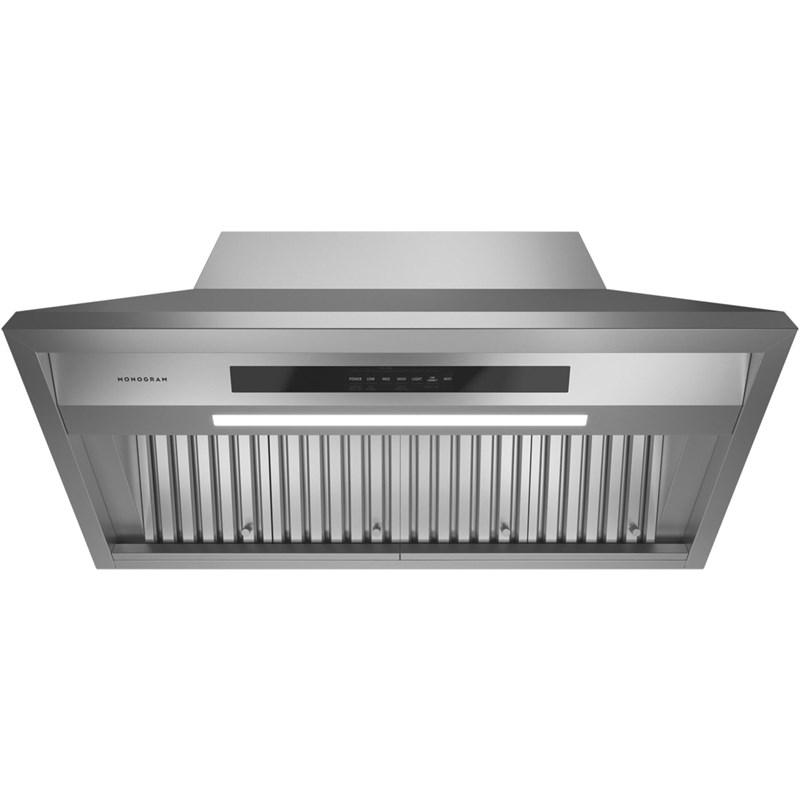

This 48-inch Monogram range hood features LED lighting, a fan timer, a 1220 CFM blower and a 4-speed fan.
Ask an Expert
Documents
LED LIGHTS
LED Lights - Designed to meet a range of lighting needs, these versatile LED lights offer six levels of intensity, from ambient to low/night illumination.
REMOVABLE FILTERS
Three Removable Filters - A trio of filters effectively trap odor-causing, airborne particles and are conveniently removable for easy cleaning.
FILTER INDICATOR LIGHT
Filter Indicator Light - To ensure filters work at maximum efficiency, an indicator light signals when they need to be cleaned.
FAN TIMER
Fan Timer - Convenient and energy-efficient, the fan can be set to automatically shut off after 5, 10 or 20 minutes of operation.
IMPORTANT: Images may not reflect actual product.
| GENERAL | |
|---|---|
| Series Name | Professional Statement Collection |
| Blower Included | Yes |
| Airflow | 1220 CFM |
| Style | Chimney |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Installation | Wall Mount |
| FEATURES | |
| Wi-Fi | Yes |
| Technologies |
• WiFi Connect • Chef Connect |
| Ducting Information | 10" Round |
| Speeds | 4 Speeds - Off + 4 (3 Speed + Boost) |
| Additional Information |
• Cooktop Lighting LED Strip • WiFi Connect Built-In • Damper in Transition • Working Speed CFM/Sones: 410/4.0 • CFM/ Sones Rating: 940/10.5 • Exhaust Options: Dual Top/Back: 10" Round / Back 8" x 12" • Clean Filter Warning (App) • Delay-Off • Variable Speed Fan • Control: Glass Touch Backlit • 4 Baffle Stainless Steel Filters • 3 Grease Trays • 4 Lighting Levels • Removable Filters |
| ELECTRICAL INFORMATION | |
| Information | 110 V |
| ACCESSORIES | |
| Optional |
• Backsplash Kit: UX12BS36PSS / UXADBS36PSS / UXADBS48PSS • 10' Ceiling Extension - ZX10D14SPSS • 12' Ceiling Extension - ZX12D13SPSS |
| DIMENSIONS | |
| Class Width | 48" |
| Width | 48 inch(es) / 121.92 cm |
| Height | 18 inch(es) / 45.72 cm |
| Depth | 22 inch(es) / 55.88 cm |
| Weight | 100 lb(s) / 45.36 kg |
| SHIPPING DIMENSIONS | |
| Width | 54 inch(es) / 137.16 cm |
| Height | 26 inch(es) / 66.04 cm |
| Depth | 31 inch(es) / 78.74 cm |
| Weight | 124.01 lb(s) / 56.25 kg |
| WARRANTY | |
| Warranty | Limited 2 Years Parts and Labor |
| UPC | |
| UPC# | 084691851783 |
