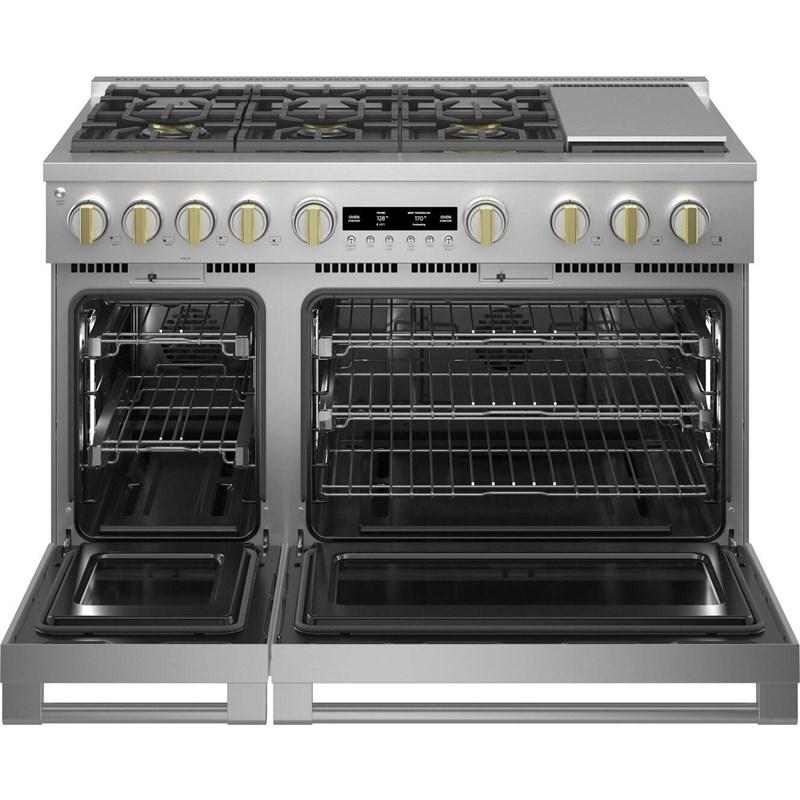

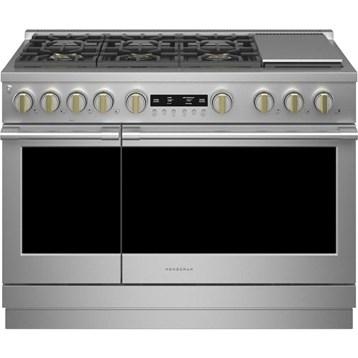

ZGP486NDTSS
(Ranges - Gas)
This 48-inch Monogram gas range features Convection Technology, WiFi Connect, 6 cooktop burners with griddle and a total capacity of both ovens of 8.9 cu.ft.
Ask an Expert
Documents
REVERSE AIR CONVECTION SYSTEM
Designed to optimize air movement in the oven, the convection fan system automatically adjusts airflow—forwards or backwards—depending on the oven mode being used.
SEAMLESS STAINLESS TOP FRAME
Seamless Stainless Top Frame - Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at.
SOFT-CLOSE HINGES
Soft-Close Hinges - Specially designed, soft close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement.
SOLID BRASS BLADES ON PRECISION MACHINED KNOBS
Solid Brass Blades on Precision Machined Knobs - With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents.
RING-LIT KNOBS
Ring-Lit Knobs - Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven.
CHEF CONNECT
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items, like appliance clocks, surface lights and even the vent when the burners are on.
DYNAMIC OVEN LCD
Dynamic Oven LCD - Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp.
INDUSTRY EXCLUSIVE CUSTOM COLOR LED ACCENT LIGHTING
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance.
SMARTHQ™ APP
SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance.
VERSATILE GAS BURNER CONFIGURATION
Delivering exceptional cooking flexibility, the multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame.
WIFI MONITORING AND REMOTE CONTROL WITH THE SMARTHQ™ APP
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more.
| GENERAL | |
|---|---|
| Series Name | Professional Statement Collection |
| Fuel Type | Natural Gas |
| Installation Type | Freestanding |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Appliance Care |
• Self-Clean Oven Door Lock • 3 Self-Clean Oven Racks (Caterer Oven) • 2 Self-Clean Oven Racks (Everyday Oven) • Delay Clean Option (Both Ovens) • Steam Clean (Both Ovens) |
| COOKTOP | |
| Burners/Elements | 7 |
| Burners/Elements Output |
• Front Left Burner: 23000 BTU • Back Left Burner: 18000 BTU • Back Right Burner: 18000 BTU • Front Right Burner: 23000 BTU • Middle Back Burner: 15000 BTU • Middle Front Burner: 15000 BTU • Griddle: 18000 BTU |
| Burners | Sealed |
| Other | Griddle |
| OVEN | |
| Capacity (cu. ft.) |
• Total Capacity: 8.9 cu.ft. • Large Oven: 6.2 cu.ft. • Small Oven: 2.7 cu.ft. |
| Number of Ovens | Double |
| Programs |
• Convection Bake Multi/Single Rack (Both • Ovens) • Convection Roast (Both Ovens) • Precision Cooking Modes • Proof (Both Ovens) • Scan-to-Cook • Warming (Both Ovens) |
| FEATURES | |
| Technologies |
• Reverse Air Convection Technology • WiFi Connect • Chef Connect • Amazon Alexa • Bluetooth • Drop • IFTTT • Innit • Sonos • The Google Assistant |
| Convection | Yes |
| Digital Temperature Display | Yes |
| Oven Light | Yes |
| Wi-Fi | Yes |
| Additional Information |
• 2 Sealed, Dual Ring • 4 Sealed, Dual Flame Stacked (Removable Brass Accents) • Digital Temperature LCD Display (Both Ovens) with Timer Display • Customizable LED Bullnose and Knob Accent Lighting • Continuous Grates • Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates • 3 Halogen Lamps (Everyday Oven) • 6 Halogen Lamps (Caterer Oven) • Burner "On" Indicators • 140 Deg. Simmer Burner: All Burners - Adjustable • 4 Full Extension Racks • 4 Rack Positions (Everyday Oven) • 5 Rack Positions (Caterer Oven) • 12-Hour Shut-Off Capability • Audible Preheat Signal • Auto Recipe Conversion • Automatic Oven Meat Probe (Both Ovens) • Cook Time • C° or F° Programmable • Probe Mode • Proof Mode (Both Ovens) • Remote Enabled |
| ELECTRICAL INFORMATION | |
| Information |
• 120 V • 15 A |
| CERTIFICATIONS AND APPROVALS | |
| ADA Compliant | Yes |
| Sabbath/Star-K | Yes |
| ACCESSORIES | |
| Included | LP Conversion Kit |
| Optional |
• Bamboo Cutting Board - UXPRCB • Grill Accessory (Cast Iron) - UXGRILL • Optional Backguard - 12" stainless steel backsplash (ZX12B48PSS), 30"-36" adjustable stainless steel backsplash with warming shelf (ZXADJB48PSS) |
| DIMENSIONS | |
| Class Width | 48" |
| Width | 47.87 inch(es) / 121.60 cm |
| Height | 35.25 inch(es) / 89.54 cm |
| Depth (Without Handles) | 28.25 inch(es) / 71.76 cm |
| Depth (Including Handles) | 28.5 inch(es) / 72.39 cm |
| Weight | 576 lb(s) / 261.27 kg |
| Additional Dimensions | Height with Legs Extended - Maximum Height: 36 3/4" |
| SHIPPING DIMENSIONS | |
| Width | 50.5 inch(es) / 128.27 cm |
| Height | 47 inch(es) / 119.38 cm |
| Depth | 34.7 inch(es) / 88.14 cm |
| Weight | 671.99 lb(s) / 304.81 kg |
| WARRANTY | |
| Warranty |
• Limited 2 Years Parts and Labor • Limited 5 Years Gas Surface Burners • Limited Lifetime Oven Racks |
| UPC | |
| UPC# | 084691851349 |
