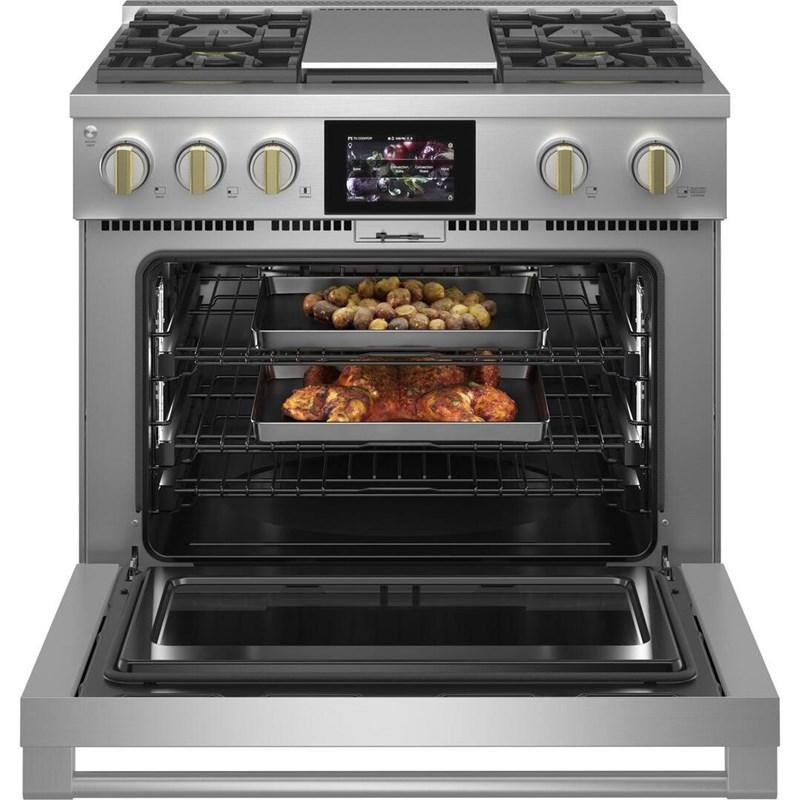

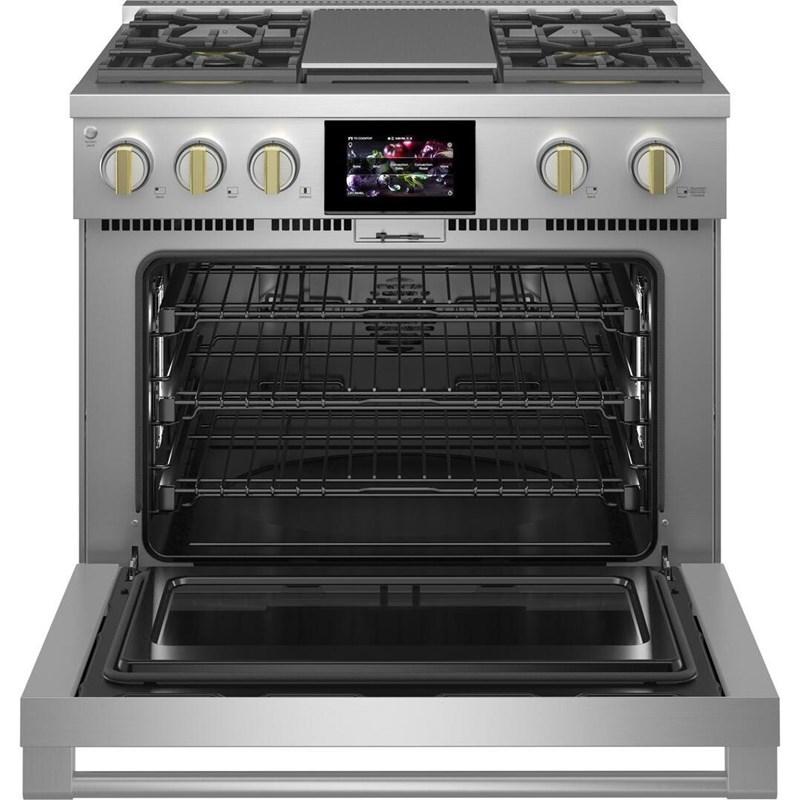

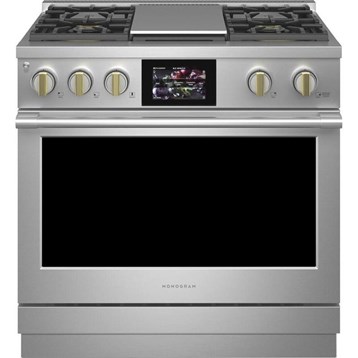

ZDP364NDTSS
(Ranges - Dual Fuel)
This 36-inch Monogram dual-fuel range features True European Convection, 4 cooktop burners and a griddle, WiFi Connect and a total oven capacity of 5.75 cu.ft.
Ask an Expert
ARTICULATING 7" TOUCH LCD CONTROL
With just a touch, this intelligently designed LCD swings out toward the user for a more ergonomic experience and then moves back flush with the control panel when not in use.
TRUE EUROPEAN REVERSE AIR CONVECTION SYSTEM
True European Reverse Air Convection System - Designed to deliver more even cooking results, the convection fan and heating element.
STAR-K CERTIFICATION
Allows Monogram ranges to operate in Sabbath mode
WIFI MONITORING AND REMOTE CONTROL WITH THE SMARTHQ™ APP
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more.
23,000 BTU MULTI-RING BRASS BURNERS
Versatile Gas Burner Configuration - Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame.
CHEF CONNECT
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items, like appliance clocks, surface lights and even the vent when the burners are on.
RING-LIT KNOBS
Ring-Lit Knobs - Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven.
SOLID BRASS BLADES ON PRECISION MACHINED KNOBS
Solid Brass Blades on Precision Machined Knobs - With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents.
SOFT-CLOSE HINGES
Soft-Close Hinges - Specially designed, soft close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement.
SEAMLESS STAINLESS TOP FRAME
Seamless Stainless Top Frame - Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at.
INDUSTRY EXCLUSIVE CUSTOM COLOR LED ACCENT LIGHTING
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance.
VERSATILE GAS BURNER CONFIGURATION
Delivering exceptional cooking flexibility, the multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame.
TRUETEMP™ BURNER
Industry Exclusive—TrueTemp™ Burner - This powerful 21,000 BTU gas burner offers a precision temperature-management system that works with Hestan Cue™ cookware for a consistently delicious cooking experience.
3-PIECE GRATES WITH REVERSIBLE WOK FEATURE
Designed to adapt to different cooking styles, these reversible grates are flat on one side and uniquely contoured on the other to perfectly fit round-bottom woks.
| GENERAL | |
|---|---|
| Series Name | Professional Statement Collection |
| Fuel Type | Dual Fuel - Natural Gas |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Appliance Care |
• Self-Clean Oven Door Lock • Self-Clean • Steam Clean • 3 Self-Clean Oven Racks • Delay Clean Option |
| COOKTOP | |
| Burners/Elements | 5 |
| Burners/Elements Output |
• Griddle: 18,000 BTU • (1x) Burner: 23,000 BTU • (1x) Burner: 21,000 BTU • (2x) Burners: 15,000 BTU |
| Burners | Sealed |
| Other | Griddle |
| OVEN | |
| Capacity (cu. ft.) | 5.75 cu.ft. |
| Number of Ovens | Single |
| Programs |
• Convection Bake Multi-Rack • Convection Broil Hi/Lo • Convection Roast • Hot-Air Frying • Precision Cooking Modes • Proof • Scan-to-Cook • Warming |
| FEATURES | |
| Technologies |
• True European Convection • TrueTemp™ Burner • Chef Connect • WiFi Connect • Amazon Alexa • Bluetooth • Drop • Hestan Cue • IFTTT • Innit • Sonos • The Google Assistant |
| Air Fry | Yes |
| Convection | Yes |
| Delay Bake/Start | Yes |
| Digital Temperature Display | Yes |
| Oven Light | Yes |
| Self-Cleaning | Yes |
| Wi-Fi | Yes |
| Additional Information |
• 2 Sealed, Dual Flame Stacked • (Removable Brass Accents) • Front Right TrueTemp™ Burner • 8-Pass Broil Element • Hidden Bake • 7" Full-Color Touch LCD Screen • Digital Temperature Display with Timer Display • Customizable LED Bullnose and Knob • Accent Lighting • Porcelainized Cast Iron 3-Piece • Reversible (Flat/Wok) Grates • Convection Roasting Rack • Broiler Pan and Grid • 5 Rack Positions Full-Extension • 12-Hour Shut-Off Capability • Audible Preheat Signal • Auto Recipe Conversion • Automatic Oven Meat Probe • Probe Mode • Proof Mode • Remote Enabled • Reverse Air Convection • Electronic with Auto Reignition |
| ELECTRICAL INFORMATION | |
| Information |
• 240 V • 30 A |
| CERTIFICATIONS AND APPROVALS | |
| ADA Compliant | Yes |
| Sabbath/Star-K | Yes |
| ACCESSORIES | |
| Included | LP Conversion Kit |
| Optional |
• 30/36" Monogram Knob Kit - ZXPR36KKTSS (SS, qty.9) • Optional Backguard - 12" stainless steel backsplash (UX12BS36PSS) • 30"-36" adjustable stainless steel backsplash with warming shelf (UXADBS36PSS) • High Altitude Kit - WB28K10553 |
| DIMENSIONS | |
| Class Width | 36" |
| Width | 35.87 inch(es) / 91.12 cm |
| Height | 35.25 inch(es) / 89.54 cm |
| Depth (Without Handles) | 28.25 inch(es) / 71.76 cm |
| Depth (Including Handles) | 28.5 inch(es) / 72.39 cm |
| Weight | 417 lb(s) / 189.15 kg |
| Additional Dimensions | Height with Legs Extended Maximum Height: 36 3/4" |
| SHIPPING DIMENSIONS | |
| Width | 38.5 inch(es) / 97.79 cm |
| Height | 47 inch(es) / 119.38 cm |
| Depth | 34.7 inch(es) / 88.14 cm |
| Weight | 462 lb(s) / 209.56 kg |
| WARRANTY | |
| Warranty |
• Limited 2 Years Parts and Labor • Limited 5 Years Gas Surface Burners • Limited Lifetime Oven Racks |
| UPC | |
| UPC# | 084691851301 |
