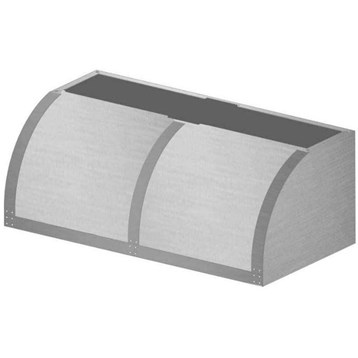

BZ060MLPLTD
(Ventilation - Hood Shells)
This 60-inch wide BlueStar range hood features dimmable LED lighting, stainless baffle filters and innovative multi-stage grease capture system.
Ask an Expert
THREE-SPEED FAN + BOOST FEATURE
Three-speed fan + Boost feature: Three unique blower speeds are operated by a discreet push-button control panel system. A fourth Boost speed can be selected for high smoke cooking. It will run for 7 minutes to efficiently clear the air before automatically returning to the third speed.
MULTI-STAGE GREASE CAPTURE SYSTEM
This innovative system starts with durable, dishwasher safe, stainless steel baffle filters that improve airflow and capture over 90% of cooking grease. The second stage is an inner shield that works to distribute airflow evenly across the entire cooking surface while capturing any grease that may come through. Finally, an easily removable grease tray collects any final residual grease.
STUNNING LED LIGHTING
Energy-efficient LED lights work to perfectly highlight your cooking surface for improved visibility. The light intensity is adjustable and a memory feature has the lighting stay in the last set position when turned back on.
QUIET PERFORMANCE WITH MULTIPLE BLOWER OPTIONS
BlueStar® ventilation hoods provide optimal exhaust with whisper-quiet operation. They also give you the option of choosing between multiple blower options to fit any kitchen design.
| GENERAL | |
|---|---|
| Series Name | Bonanza Designer Series |
| Blower Included | No |
| Style | Standard |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel Designer Metal Strapping and Rivets |
| Installation | Wall Mount |
| FEATURES | |
| Dishwasher-Proof Filters | Yes |
| Speeds | 3-Speeds with Boost |
| Additional Information |
• Professional-Grade Performance with Three Exhaust Settings and Boost Feature • Whisper Quiet Operation • Heavy-Duty, Commercial Grade Materials • Dimmable LED Lighting • Easy-to-Use Push-Button Controls • Innovative, Multi-Stage Grease Capture System • Stainless Baffle Filters Seamlessly Remove for Easy Dishwasher Cleaning • Accommodates Top or Rear Discharge |
| ELECTRICAL INFORMATION | |
| Information |
• 120 V • 10 A |
| ACCESSORIES | |
| Optional |
• Duct Covers: • 2"Duct Cover DCSW0xxx002 • 6"Duct Cover DCSW0xxx006 • 12"Duct Cover DCSW0xxx012 • 18"Duct Cover DCSW0xxx018 • 24"Duct Cover DCSW0xxx024 • 30"Duct Cover DCSW0xxx030 • 36"Duct Cover DCSW0xxx036 • 42"Duct Cover DCSW0xxx042 • 48"Duct Cover DCSW0xxx048 • Blower Options: • In-hood BS-CFM-600 • BS-CFM-1200 • In-line: • ATEX-0.8 : 800 CFM • ATEX-1.2: 1200 CFM • Remote HYEX-1.0: 1000 CFM • HYEX-1.4: 1400 CFM |
| DIMENSIONS | |
| Class Width | 60" |
| Width | 60 inch(es) / 152.4 cm |
| Height | 18 inch(es) / 45.72 cm |
| Depth | 24 inch(es) / 60.96 cm |
| WARRANTY | |
| Warranty | Limited 1 Year Parts and Labor |
