HCP56652UC
(Ventilation - Range Hoods)

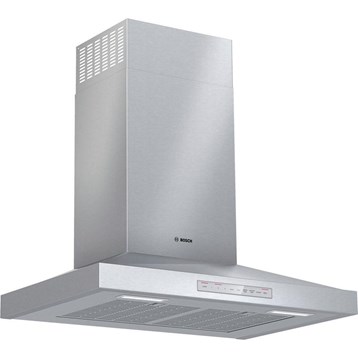

This Bosch 500 Series 36" pyramid canopy chimney hood features Home Connect, 4-speed power level options, LCD touch display controls and dishwasher safe aluminum mesh filters.
Ask an Expert

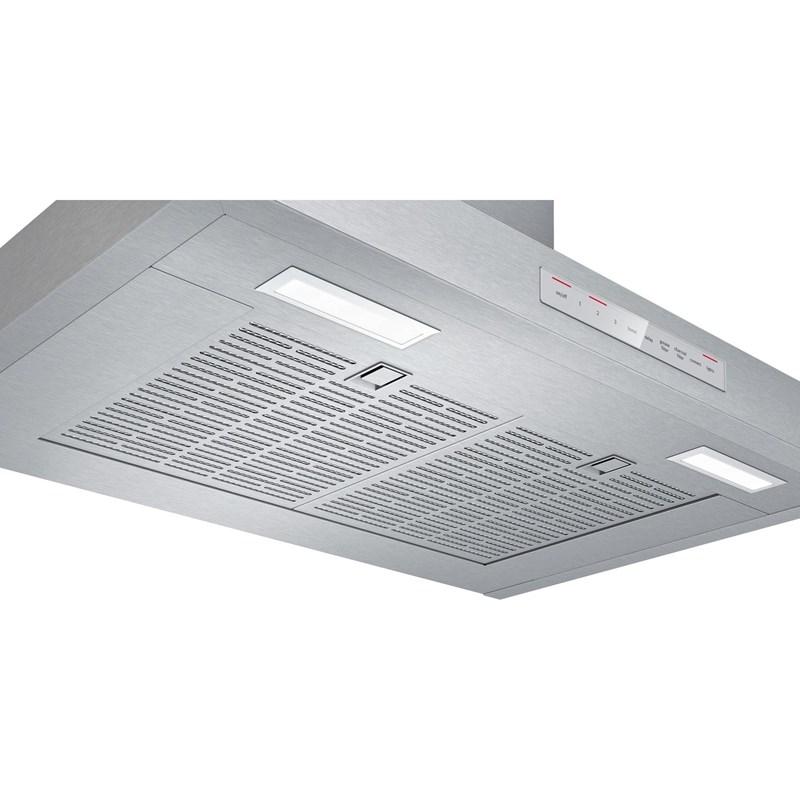

DISHWASHER SAFE
Dishwasher safe filters with stainless steel covers

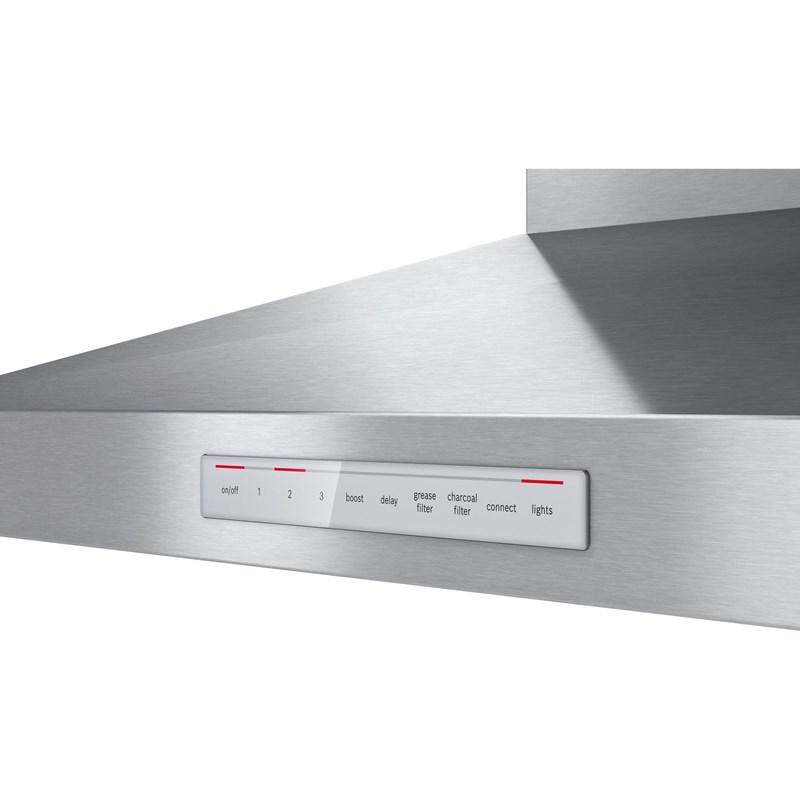

TOUCH CONTROLS WITH LCD DISPLAY
Four speed touch controls with lcd display
INTEGRATED BLOWER 600 CFM
600 cfm centrifugal integrated blower included
IMPORTANT: Images may not reflect actual product.
| GENERAL | |
|---|---|
| Series Name | 500 series |
| Blower Included | Yes |
| Airflow | 600 CFM |
| Style | Chimney |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Installation | Wall Mount |
| FEATURES | |
| Wi-Fi | Yes |
| Dishwasher-Proof Filters | Yes |
| Technologies | Home Connect™ |
| Ducting Information | 8" Diameter Of Air Duct |
| Speeds | 4-Stage |
| Additional Information |
• Touch Controls With LCD Display • Aluminum Mesh Filters • Multilayer Cassette Grease Filters • Sones: 9.9 HS / 4.56 WS • 2x 80 W Halogen Lights |
| ELECTRICAL INFORMATION | |
| Information |
• 120 V • 60 Hz |
| ACCESSORIES | |
| Included | Damper |
| Optional |
• Chimney Extension For 9-11.5 ft. Ceilings: HCPEXT5UC • Recirculation Kit: HCREC5UC • Filter Kit: HCIFILTUC |
| DIMENSIONS | |
| Class Width | 36" |
| Width | 36 inch(es) / 91.44 cm |
| Height | 25 inch(es) / 63.5 cm |
| Depth | 19.68 inch(es) / 49.99 cm |
| Weight | 53 lb(s) / 24.04 kg |
| Additional Dimensions |
• Height of the chimney: 19 9/16"–33 7/8" /23 1/4"–42 9/16" • Required Distance Above Cooktop / Range Cooking Surface: 30" Electric / 30" Gas |
| WARRANTY | |
| Warranty | Limited 1 Year Parts And Labor |
| UPC | |
| UPC# | 825225959465 |
