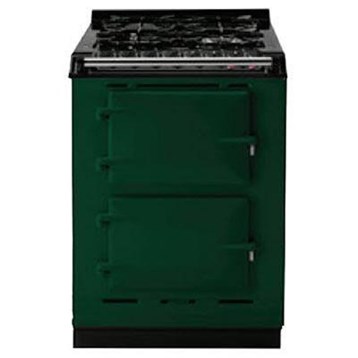

TCDCLPMBRG
(Ranges - Dual Fuel)
The AGA integrated dual-fuel module is designed for those who love the many benefits of their cast iron AGA range and wish to incorporate the joys of open flame and conventional ovens. This integrated solution attaches to any 3-oven AGA total control or 3-oven AGA dual control. Want the ultimate AGA? Use the integrated module to create a 7-oven cooking experience!
Ask an Expert
| GENERAL | |
|---|---|
| Fuel Type | Dual Fuel - Liquid Propane |
| Installation Type | Slide-in |
| Color | Green |
| Manufacturer Color | Green |
| COOKTOP | |
| Burners/Elements | 4 |
| Burners/Elements Output |
• 2x : 6,150 BTU • 1x : 11,000 BTU • 1x : 12,000 BTU |
| Burner/Element Size | (4) 10" x 10" Burners |
| Burners | Open |
| OVEN | |
| Number of Ovens | Double |
| FEATURES | |
| Convection | Yes |
| Delay Bake/Start | No |
| Digital Temperature Display | No |
| Downdraft Ventilation | No |
| Self-Cleaning | No |
| Additional Information |

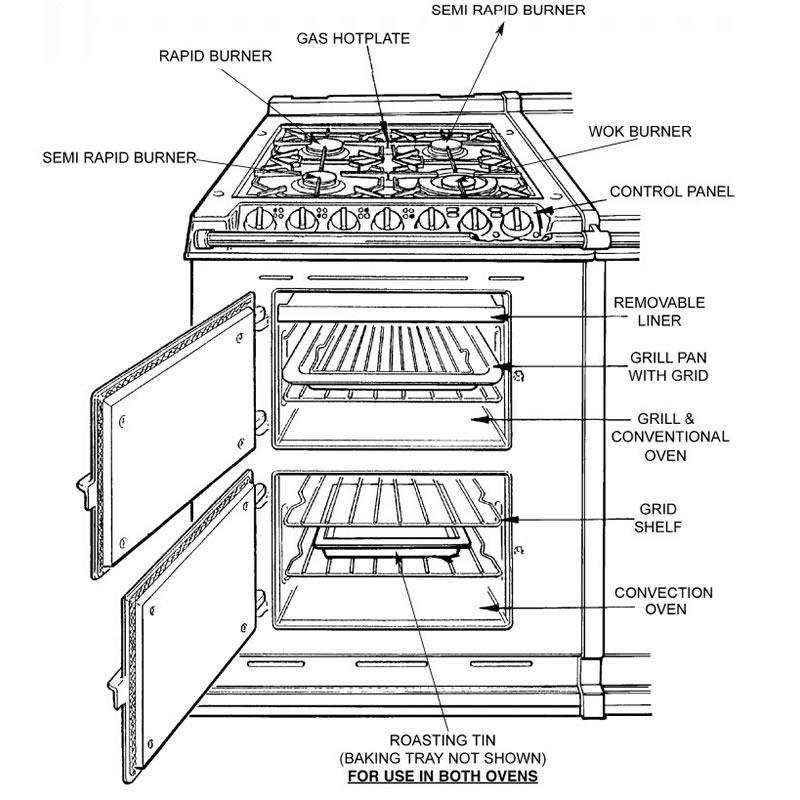

• Iconic Aga Signature Look With Cast Iron Doors And Cast Iron Front • Four-ring Gas Burner Provides Instant Power And A Rapid Response For Any Type Of Cooking • Special Oven Linings - To Save On Cleaning Time, The Ovens Have A Specially Developed Lining Which Helps Them Keep Themselves Clean During Cooking • One Conventional Oven With Rapid Response Electric Grill/broiler • A Convection Oven With Fan |
| DRAWER FEATURES | |
| Baking | No |
| Broiler | No |
| Storage | No |
| Warming | No |
| ELECTRICAL INFORMATION | |
| Information | 240V |
| CERTIFICATIONS AND APPROVALS | |
| Sabbath/Star-K | No |

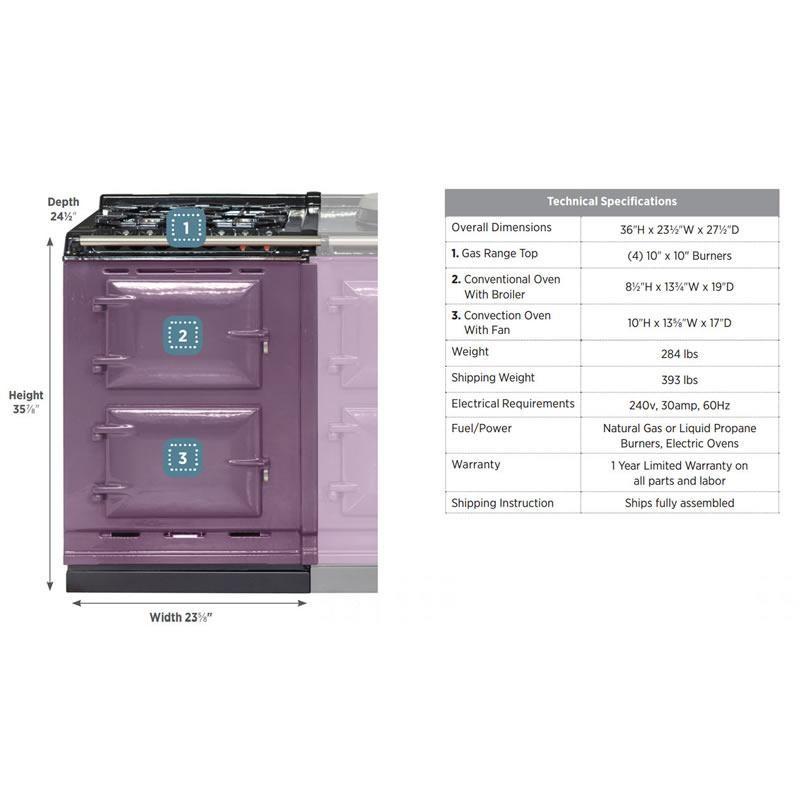

| DIMENSIONS | |
| Class Width | 24" |
| Width | 23.5 inch(es) / 59.69 cm |
| Height | 36 inch(es) / 91.44 cm |
| Depth (Without Handles) | 27.5 inch(es) / 69.85 cm |
| Weight | 284 lb(s) / 128.82 kg |
| Additional Dimensions |
• Conventional Oven With Broiler: 8 1/2"H x 13 3/4"W x 19"D • Convection Oven With Fan : 10"H x 13 5/8"W x 17"D |
| SHIPPING DIMENSIONS | |
| Weight | 393 lb(s) / 178.26 kg |
| WARRANTY | |
| Warranty | Limited 1-Year Parts and Labor |
